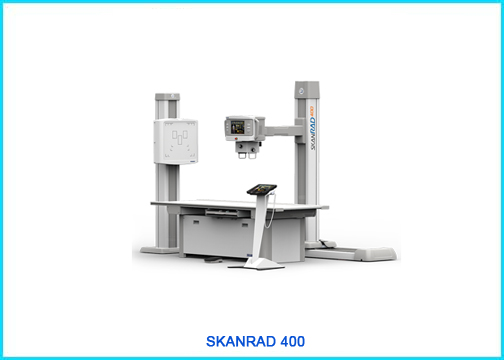

Fixed X- Ray Machine
Description:
• DISPLAY: 10.4” LCD Touch Screen tube head
Console
• FREQUENCY: 32kW HF Fixed RAD System
• kVp: 40kV-125kV in steps of 1kV
• mA: 10mA-400mA in 17 steps
• mAs range: 0.32 mAs to 630 mAs in 34 steps
• Exposure Time Range: 5 ms to 5 sec.
• Integrated tube head with no bulky cables
• Rotating Anode with Dual Focal Spots
• Fully motorized Horizontal and Vertical
movements
• HEAD: 120° Tube head rotation
• Integrated tube head with no bulky cables
• ±180° Tube head vertical column rotation
• 4 way floating table
• Well routed minimal conduit for cables
• Chest bucky suitable for cassette or FPD of
sizes up to 17” x 17”
• Floor/wall mount Console with 10.4” LCD Touch
Screen .
• AEC control
• TOUCH SCREEN:Hand held touch screen console
with X-ray exposure parameters
• Digital Angular Meter for tube head
positioning
• Collimator: LED collimator

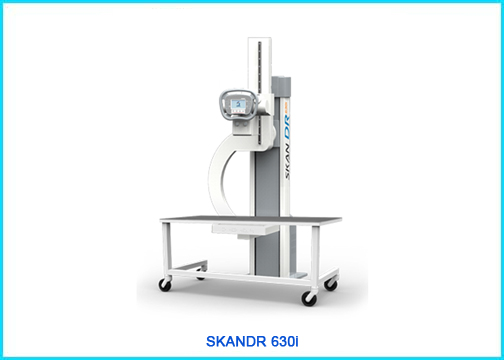

Description:
• FREQUENCY: 50kW HF generator with flat panel
• Digital radiography platform
• kVp Range: 40-150
• mA Range: 10-630
• Dynamic range:16-bit dynamic range, 100 μm
pixel pitch
• Flat panel detector:
• 17”x17” CsI Flat panel detector
• Intelligent anti-collision system
• Fully motorized movements
• 3-Preset auto-positioning
• Advanced image processing & DICOM
• Compatible software
Mobile X- Ray Machine

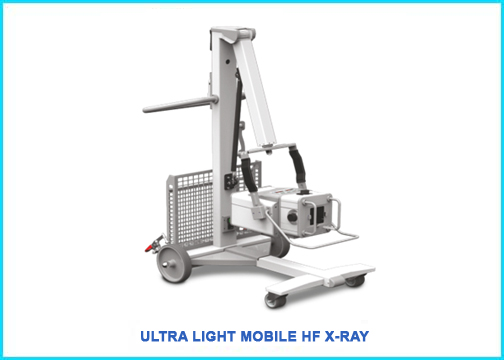

Description:
• FREQUENCY :Ultra light mobile HF X-Ray
(<55 kg)
• 2.8kW, 200kHz, 60mA with APR
• Suitable for NICU, ICU, Trauma, Ortho &
Ambulance
• HEAD :Tube-head rotation
• Hand-held and integrated console for parameter
setting and exposure control
• COLIMATOR :90° collimator rotation

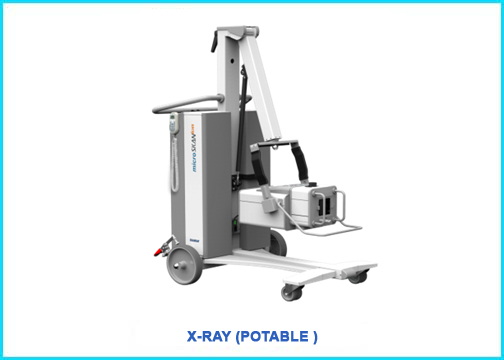

Description:
• MA: 2.8kW, 200kHz, 60mA with APR
• Hand-held and integrated console for parameter
setting and exposure control
• HEAD: Tube-head rotation
• Suitable for NICU, ICU, Trauma, Ortho &
Ambulance
• COLLIMATOR: 90° collimator rotation
• BATTERY: operated version of
microSkan,providing up-to 200 exposures on
fullcharge

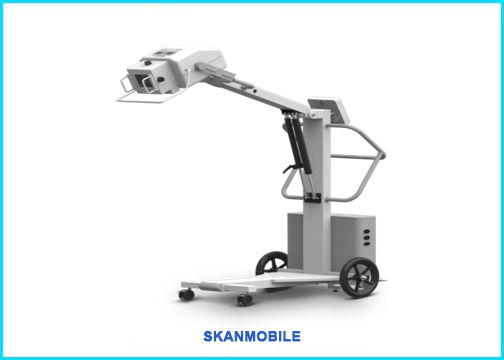

Description:
• FREQUENCY : 4KW, 100MA,200KHZMOBILE HIGH-
FREQUENCY X-RAY
• LIGHT FIELD INTENSITY : min 160 Lux @ 1m
• HEAD :Tube-head rotation
• APPLICATION :Suitable for NICU, ICU, Trauma &
Ortho
• Draws clean power from mains
• Easy to move (<85 kg)
• COLLIMATOR :90° collimator rotation

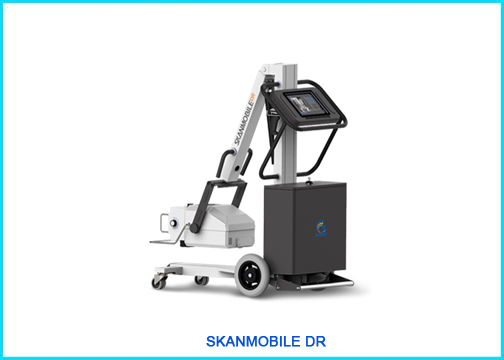

Description:
• DISPLAY: 12” QHD (2160 x 1440 Pixels)
resolution LCD display
• 14” x 17” active display area
• FREQUENCY: Ultralight mobile HF DR system
• 200 kHz, 4 kW, 100 mA with APR (Anatomically
Programmed Radiography)
• HEAD: Integrated console on tube head
• Tube-head rotation for minimal mobility
patients
• TOUCH SREEN: Dual Touch 10 finger capacitive
touch screen with IP-55 protection
• OPTIONAL: Bar-code reader for easy patient
data input & storage
• RAM: 8GB RAM
• GB: 256 GB Solid State Driv
• Near zero leakage radiation
• COLLIMATOR: 90° collimator rotation for easy
positioning
• Quad Core Processor
• Multiple Operating System Options
• Interface: USB 3.0, LAN & HDMI
• BATTERY: 11 hours Back-up with twin batteries
• Direct deposit CSI scintillator, wireless
panel
• Image preview time: <10 seconds
• Exposure Control: Full Field Automatic
Exposure Detection
• Dual band 2.4GHz/5GHz wireless transmission

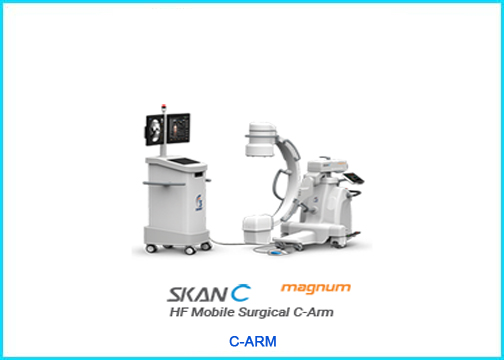

C- Arm Machine
Description:
• SKAN C
• High-frequency generator technology with a
switching range from 80 to 250 kHz
• Near-zero leakage radiation
• 3.5 kW dual-processor Monoblock generator with
proprietary radiation shielding technology
• Ideal for Neurology, orthopedic ,Urology
Gastrointestinal Pain management. Interventional
& Peripheral Vascular Images
• Image capture with 1k x1k resolution for
exceptional image quality
• 10.4 TFT LCD touch console with optical
encoder and hot-keys for simple operation
• Laser Aimer & Virtual Collimation for
exposure-less alignment of Region of Interest
• Vascular Mode, DSA Trace & Roadmap features as
standard
• Virtual Dose Management System to ensure
absolute safety
